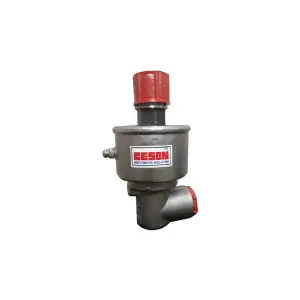

Roto Seal Coupling

AvailabilityIn Stock
CategoryRoto Seal Coupling
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Roto Seal Coupling Details

Description
No. Part Name
1 Shaft
2 Body
3 Bearing Lock For Body
4 Middle Washer For Bearing
5 Bearings
6 Greas Cap
7 Bearing Lock For Shaft
8 Carbonfilled / PTFE
9 Stopper Pin
10 ‘O’ Ring
11 Washer
12 Spring

Specification

1. S. S. 304 / S.S. 316 Investment Cast Body & Shaft
2. Size : 1/4″ to 2″ BSP
3. High Performance Seals with fine lapped
4. In Line Repairable Design for easy maintenance
5. Single & Double / Dual connection available
6. Different types of model as per application Normal, High Temperature & Chilled Water

Techanical Specification

1. Body : CF8 / CF8M
2. Shaft : CF8 / CF8M
3. Temperature Range: 50° C ( Chilled Water & high temperature available on request)
4. Seals : High performance carbon filled PTFE
5. RPM : 300 Maximum
6. Media : Air, Water, Oil & Gas (Normal Application)
